Unity+Jenkins实现自动化打包

引言

两年两年你知道这两年我是怎么过的吗？天天打包测试，你知道有多好玩吗！哈哈哈，开个玩笑。作为一名Unity开发工程师，在开发、测试、发布环节都需要我们导出安卓或者苹果安装包，今年我们公司使用的苹果打包机是mac mini~~（为了省钱，哈哈）~~，本身打包速度就非常慢，更何况安卓平台需要发布多渠道，要经常替换SDK文件，苹果平台则需要先处理XCode工程，才能进行导出，全部手动处理会非常容易出错，简直是雪上加霜。所以今天总结一下我是如何使用Unity+Jenkins来解决我这些烦恼的，希望对你也可以有帮助

原理

实现原理比较简单，主要还是需要依靠操作系统的命令行。大部分功能就算不使用Jenkins，也可以实现。使用Jenkins主要是因为它给我们提供了一套可视化界面还有一系列的插件，帮助我们简化了操作流程，方便维护。

一、如何安装Jenkins

我是在Mac上安装的Jenkins，因为我们在Windows上不可以导出苹果包，但是在Mac上我们可以导出安卓包!
在Mac上我们可以通过.pkg、brew、.war三种方式进行安装

.pkg安装程序，安装方式：双击安装程序即可安装；不推荐使用。好处：可以通过桌面图标启动Jenkins，坏处：没有文件操作权限！根本就没法用！
brew命令行，安装方式：在终端输入brew install jenkins。推荐使用。好处：安装后可以在终端直接输入Jenkins来启动Jenkins，坏处：需要安装brew工具
.war包，推荐使用。好处：方便更新，直接替换.war文件即可，坏处：启动时不方便，每次都需要在终端用java -jar war所在路径/jenkins.war启动，当然你可以使用Shell脚本设置开机自启，但是还是太麻烦了！

注意：Jenkins依赖Java环境，并且Jenkins的下载速度较慢，容易失败，建议翻墙下载

二、如何登录Jenkins

首先检查Jenkins是否启动，如果没有启动，需要根据安装方式先进行启动
然后打开浏览器输入localhost:8080（如果修改过输入修改后的ip），进入Jenkins操作界面
如果是第一次启动，需要先输入密码来解锁Jenkins。然后创建管理员账号后使用管理员账号登录

三、Jenkins插件推荐

简要介绍一下我使用到的插件：

Localization：Chinese(Simplified) 简体中文语言包，可以汉化部分说明

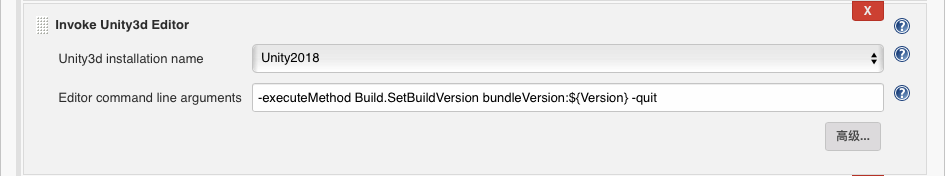

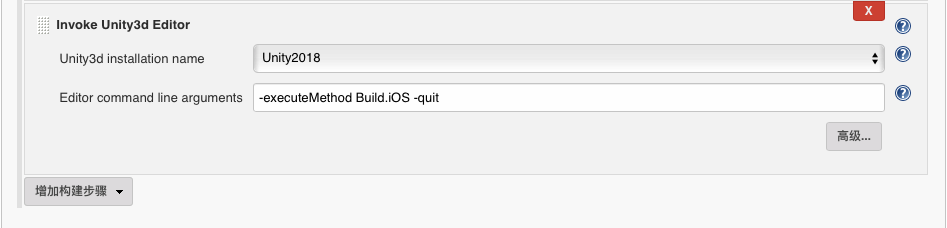

Unity3d plugin 增强Unity编辑器打包拓展，默认Unity项目在工作区，可以在视图显示Log

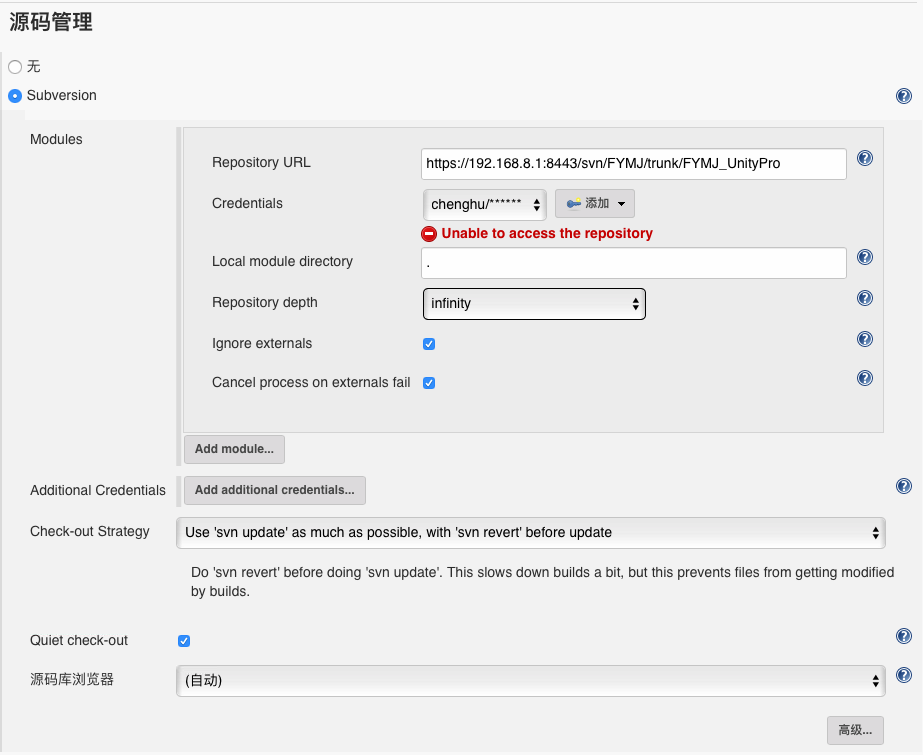

Subversion SVN插件，可以在任务流水线中添加SVN模块，执行项目导出、还原、更新等操作

注意：不要在新手入门时安装任何插件，很容易下载失败，进去后会有错误，建议登录后在Manage jenkin/Manager Plugins中管理插件

五、修改Jenkins插件配置

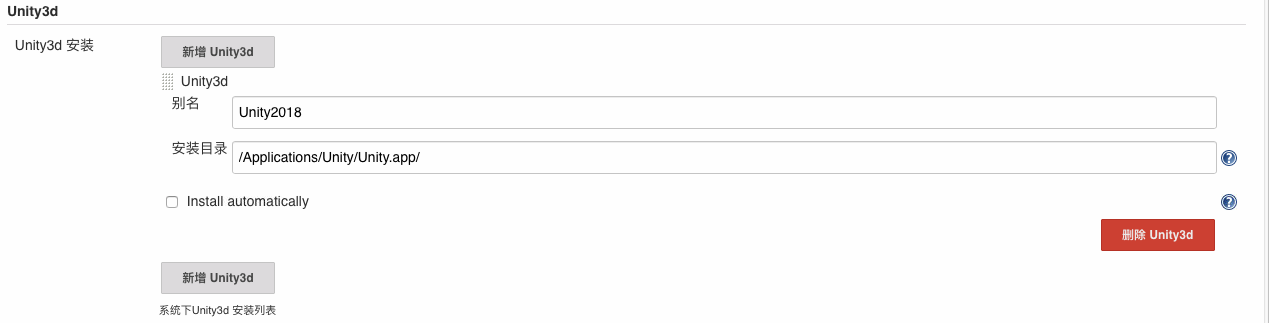

Unity3d plugin。需要在Jenkins的Global Tool Configuration设置中添加Unity安装目录

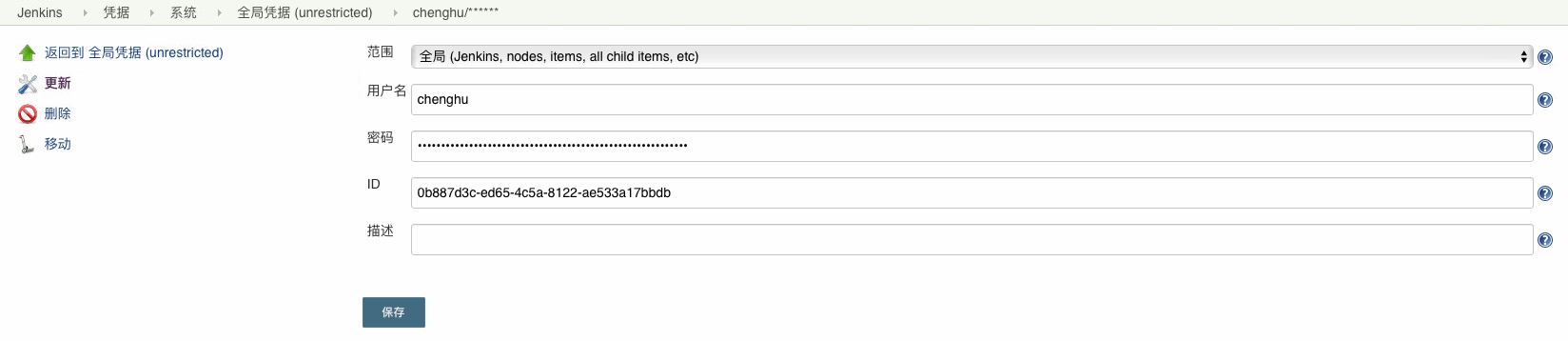

Subversion。需要在Jenkins凭证设置中添加SVN用户名、密码
六、Unity编辑器拓展打包
项目设置代码

通用设置

PlayerSettings.companyName="公司名称"
PlayerSettings.productName ="产品名";
//允许屏幕上下旋转
PlayerSettings.defaultInterfaceOrientation = UIOrientation.AutoRotation;
PlayerSettings.allowedAutorotateToPortrait = false;
PlayerSettings.allowedAutorotateToPortraitUpsideDown = false;
PlayerSettings.allowedAutorotateToLandscapeRight = true;
PlayerSettings.allowedAutorotateToLandscapeLeft = true;
PlayerSettings.SetApplicationIdentifier(buildTargetGroup, "包名");//根据打包目标平台设置包名
PlayerSettings.SplashScreen.show = false; //是否显示启动Logo

Android平台设置

//设置目标SDK版本
PlayerSettings.Android.targetSdkVersion = AndroidSdkVersions.AndroidApiLevel26;
//设置不导出安卓工程
EditorUserBuildSettings.androidBuildSystem=AndroidBuildSystem.Internal;
DirectoryInfo dir = Directory.GetParent(Application.dataPath);
//配置安卓签名
string keystorePath = dir.ToString() + @"/user.keystore";//签名文件路径
PlayerSettings.Android.keystoreName = keystorePath;
PlayerSettings.Android.keystorePass = "XXX";//文件密码
PlayerSettings.Android.keyaliasName = "XXX";//key的别名
PlayerSettings.Android.keyaliasPass = "XXX";//key的密码

iOS平台设置

1 2	//配置苹果开发账号TeamID PlayerSettings.iOS.appleDeveloperTeamID = "XXX";

项目打包代码

Android平台：导出为.apk

BuildPlayerOptions buildPlayerOptions = new BuildPlayerOptions();
string dir = BuildTool.GetBuildPackageRootDir() + "/" + "Android/";
string locationPathName = dir + BuildTool.GetAndroidPackageName();
buildPlayerOptions.locationPathName = locationPathName;
buildPlayerOptions.scenes = BuildTool.GetBuildScene();
buildPlayerOptions.target =BuildTarget.Android;
buildPlayerOptions.options = BuildOptions.None;
BuildReport report = BuildPipeline.BuildPlayer(buildPlayerOptions);
BuildSummary summary = report.summary;
 if (summary.result == BuildResult.Succeeded) {
    Debug.Log("Build succeeded: " + summary.totalSize + " bytes");
    BuildTool.OpenFolder(dir);
    }
 if (summary.result == BuildResult.Failed) {
    Debug.Log("Build failed");
    }

iOS平台：使用sh脚本调用XCode命令行导出ipa
导出XCode工程

BuildPlayerOptions buildPlayerOptions = new BuildPlayerOptions();
string dir = BuildTool.GetBuildPackageRootDir() + "/" + "iOS/";
string locationPathName = dir + BuildTool.GetXcodeProjectName();
buildPlayerOptions.locationPathName = locationPathName;
buildPlayerOptions.scenes = BuildTool.GetBuildScene();
buildPlayerOptions.target = BuildTarget.iOS;
buildPlayerOptions.options = BuildOptions.None;
BuildReport report = BuildPipeline.BuildPlayer(buildPlayerOptions);
BuildSummary summary = report.summary;
//构建完XCode工程后会走这里
if (summary.result == BuildResult.Succeeded) {
     Debug.Log("Build succeeded: " + summary.totalSize + " bytes");
    //打开文件夹
    BuildTool.OpenFolder(locationPathName);
    //导出ipa
    ExportIPA(locationPathName, BuildTool.GetIPAExportOptionsFilePath());
}
if (summary.result == BuildResult.Failed) {
    Debug.Log("Build failed");
}

设置XCode工程

//XCode工程打包完成时，使用代码进行设置
[PostProcessBuild(100)]
public static void SetXCodeProject(BuildTarget buildTarget, string path) {
    if (buildTarget!=BuildTarget.iOS) {
        return;
    }
    string projectPath = PBXProject.GetPBXProjectPath(path);
    PBXProject project = new PBXProject();
    string fileText = File.ReadAllText(projectPath);
    project.ReadFromString((fileText));

    //获取targetGuid
    string target = project.TargetGuidByName("Unity-iPhone");

    //获取plist
    string plistPath = path + "/Info.plist";
    PlistDocument plist = new PlistDocument();
    plist.ReadFromString(File.ReadAllText(plistPath));
    //获取plist root
    PlistElementDict plistDic = plist.root;

    //---业务代码，仅供参考
    //拷贝微信分享图标，到Resources目录下
    CopyFileToXCodeProject(project, target, path,BuildTool.GetXcodeProDependentRootPath(), "Resources", "Icon.png");
    //拷贝UnityAppController脚本
    CopyFileToXCodeProject(project, target, path, BuildTool.GetXcodeProDependentRootPath(), "Classes", "UnityAppController.h");
    CopyFileToXCodeProject(project, target, path, BuildTool.GetXcodeProDependentRootPath(), "Classes", "UnityAppController.mm");
    //设置微信
    SetWeiXin(path,plistDic, project, target);
    //设置语音
    SetGameLink(plistDic,project, target);
    //设置其他
    SetOther(path, plistDic, project, target);
    ///---业务代码，仅供参考

    //覆盖plist文件
    File.WriteAllText(plistPath, plist.WriteToString());
    //覆盖Xcode工程
    File.WriteAllText(projectPath, project.WriteToString());
    }

private static void SetWeiXin(string xcodePath,PlistElementDict plistDic, PBXProject project, string target) {
    //1.拷贝wei文件
    CopyFileToXCodeProject(project, target, xcodePath, BuildTool.GetXcodeProDependentRootPath(), "wei", "libWeChatSDK.a");
    CopyFileToXCodeProject(project, target, xcodePath, BuildTool.GetXcodeProDependentRootPath(), "wei", "WechatAuthSDK.h");
    CopyFileToXCodeProject(project, target, xcodePath, BuildTool.GetXcodeProDependentRootPath(), "wei", "WXApi.h");
    CopyFileToXCodeProject(project, target, xcodePath, BuildTool.GetXcodeProDependentRootPath(), "wei", "WXApiObject.h");
    //2.Add微信 scheme
    AddURLSchemes(plistDic,"weixin", "wx5c9d9308db6097aa");
    AddQueriesSchemes(plistDic,"weixin");
    //3.添加依赖库
    project.AddFrameworkToProject(target, "SystemConfiguration.framework", false);

    AddLib(project,target, "libz.tbd");
    AddLib(project, target, "libsqlite3.0.tbd");
    AddLib(project, target, "libc++.tbd");

    project.AddFrameworkToProject(target, "Security.framework", false);
    project.AddFrameworkToProject(target, "CoreTelephony.framework", false);
    project.AddFrameworkToProject(target, "CFNetwork.framework", false);
    project.AddFrameworkToProject(target, "CoreGraphics.framework", false);
    //4.buildsettings添加flags
    project.AddBuildProperty(target, "OTHER_LDFLAGS", "-Objc");
    project.AddBuildProperty(target, "OTHER_LDFLAGS", "-all_load");
    //5.buildsettings添加头文件和库文件搜索路径
    project.AddBuildProperty(target, "HEADER_SEARCH_PATHS", "$(SRCROOT)/wei");
    project.AddBuildProperty(target, "LIBRARY_SEARCH_PATHS", "$(SRCROOT)/wei");
    }

private static void SetGameLink(PlistElementDict plistDic, PBXProject project,string target) {
    //ENABLE_BITCODE=False 关闭BitCode
    project.SetBuildProperty(target, "ENABLE_BITCODE", "false");
    //允许http
    var atsKey = "NSAppTransportSecurity"; PlistElementDict dictTmp = plistDic.CreateDict(atsKey); dictTmp.SetBoolean("NSAllowsArbitraryLoads", true);
    //添加-ObjC
    project.AddBuildProperty(target, "OTHER_LDFLAGS", "-ObjC");
    //添加库
    AddLib(project,target, "libz.tbd");
    AddLib(project,target, "libicucore.tbd");

    project.AddFrameworkToProject(target, "Contacts.framework", false);
    project.AddFrameworkToProject(target, "AddressBook.framework", false);
    project.AddFrameworkToProject(target, "CoreTelephony.framework", false);
    //权限
    plistDic.SetString("NSMicrophoneUsageDescription", "沪乐麻将需要您的同意，才能使用您的麦克风用于游戏内的语音功能。");
    }

private static void SetOther(string xcodePath,PlistElementDict plistDic, PBXProject project, string target) {
        // 权限
    plistDic.SetString("NSContactsUsageDescription", "是否允许此App访问你的通讯录");
    plistDic.SetString("NSLocationUsageDescription", "位置权限将会在您创建或加入房间后应用，允许使用后可查自己和房间中其他玩家的位置信息");
    plistDic.SetString("NSLocationWhenInUseUsageDescription", "位置权限将会在您创建或加入房间后应用，允许使用后可查自己和房间中其他玩家的位置信息");
    plistDic.SetString("NSSiriUsageDescription", "是否允许Siri启动此App？");
    //其他功能
    //1.appstore内购
    project.AddFrameworkToProject(target, "StoreKit.framework", false);
    project.AddFrameworkToProject(target, "Foundation.framework", false);
    CopyFileToXCodeProject(project, target, xcodePath, BuildTool.GetXcodeProDependentRootPath(), "Classes", "IAPInterface.h");
    CopyFileToXCodeProject(project, target, xcodePath, BuildTool.GetXcodeProDependentRootPath(), "Classes", "IAPInterface.m");
    CopyFileToXCodeProject(project, target, xcodePath, BuildTool.GetXcodeProDependentRootPath(), "Classes", "IAPManager.h");
    CopyFileToXCodeProject(project, target, xcodePath, BuildTool.GetXcodeProDependentRootPath(), "Classes", "IAPManager.m");
    //2.截图保存到相册并刷新
    plistDic.SetString("NSPhotoLibraryAddUsageDescription", "沪乐麻将需要您的同意，才能访问您的相册用来存储游戏截图。");
    CopyFileToXCodeProject(project, target, xcodePath, BuildTool.GetXcodeProDependentRootPath(), "Classes", "PhotoManager.h");
    CopyFileToXCodeProject(project, target, xcodePath, BuildTool.GetXcodeProDependentRootPath(), "Classes", "PhotoManager.m");
    //3.网络状态监听
    project.AddFrameworkToProject(target, "SystemConfiguration.framework", false);
    CopyFileToXCodeProject(project, target, xcodePath, BuildTool.GetXcodeProDependentRootPath(), "Classes", "ReachabilityF.h");
    CopyFileToXCodeProject(project, target, xcodePath, BuildTool.GetXcodeProDependentRootPath(), "Classes", "ReachabilityF.m");
    //4.应用内评分
    //StoreKit.framework Foundation.framework
    CopyFileToXCodeProject(project, target, xcodePath, BuildTool.GetXcodeProDependentRootPath(), "Classes", "UnityStoreKit.h");
    CopyFileToXCodeProject(project, target, xcodePath, BuildTool.GetXcodeProDependentRootPath(), "Classes", "UnityStoreKit.m");
    //5.点击空白区域关闭键盘
    CopyFileToXCodeProject(project, target, xcodePath, BuildTool.GetXcodeProDependentRootPath(), "Classes/UI", "UnityView.h");
    CopyFileToXCodeProject(project, target, xcodePath, BuildTool.GetXcodeProDependentRootPath(), "Classes/UI", "UnityView+iOS.mm");
    //7.重写下拉菜单
    CopyFileToXCodeProject(project,target, xcodePath, BuildTool.GetXcodeProDependentRootPath(), "Classes/UI", "UnityViewControllerBase+iOS.mm");
    //8.通过URL打开APP
    AddURLSchemes(plistDic, "fymj", "fengyeshanghaimajiang");
    }

private static void AddURLSchemes(PlistElementDict plistDic, string URLName, string URLSchemes) {
    PlistElementArray urlTypes = null;
     if (plistDic.values.ContainsKey("CFBundleURLTypes")) {
         urlTypes = plistDic["CFBundleURLTypes"].AsArray();
    }else{
         urlTypes= plistDic.CreateArray("CFBundleURLTypes");
    }

    PlistElementDict itemDict = urlTypes.AddDict();
    itemDict.SetString("CFBundleTypeRole", "Editor");
    itemDict.SetString("CFBundleURLName", URLName);
    PlistElementArray schemesArray1 = itemDict.CreateArray("CFBundleURLSchemes");
    schemesArray1.AddString(URLSchemes);
    }

private static void AddQueriesSchemes(PlistElementDict plistDic,string urlName) {
    PlistElementArray queriesSchemes = null;
    if (plistDic.values.ContainsKey("LSApplicationQueriesSchemes")) {
        queriesSchemes =plistDic["LSApplicationQueriesSchemes"].AsArray();
    } else {
        queriesSchemes =plistDic.CreateArray("LSApplicationQueriesSchemes");
    }
    queriesSchemes.AddString(urlName);
    }

// 只支持创建一级目录
private static void CopyFileToXCodeProject(PBXProject project,string target,string xcodePath,string fileRootPath,string floderName,string fileFullName) {
    //判断xcode工程是否存在这个目录
    if (!Directory.Exists(xcodePath + "/" + floderName)) {
        Directory.CreateDirectory(xcodePath + "/" + floderName);
    }
    File.Copy(fileRootPath + "/" + floderName + "/" + fileFullName, xcodePath + "/" + floderName + "/" + fileFullName,true);
    string fileGuid =project.AddFile(xcodePath + "/" + floderName + "/" + fileFullName,  floderName +"/" + fileFullName, PBXSourceTree.Source);
    project.AddFileToBuild(target, fileGuid);
    }

private static void AddLib(PBXProject project,string target,string libName) {
    project.AddFileToBuild(target, project.AddFile("usr/lib/"+ libName, libName, PBXSourceTree.Sdk));
    }

调用sh脚本

public static void ExportIPA(string xcodeProjPath,string exportOptionsPath) {
    DirectoryInfo dir = Directory.GetParent(Application.dataPath);
    string fileName = dir.ToString() + "/" + "BuildTools" + "/" + "ExportIPA.sh";
    string arguments = fileName + " " + xcodeProjPath + " " + exportOptionsPath;
    System.Diagnostics.Process process = new System.Diagnostics.Process();
    process.StartInfo.FileName = "/bin/bash";
    process.StartInfo.Arguments = arguments;
    process.StartInfo.CreateNoWindow = false; // 获取或设置指示是否在新窗口中启动该进程的值（不想弹出powershell窗口看执行过程的话，就=true）
    process.StartInfo.ErrorDialog = true; // 该值指示不能启动进程时是否向用户显示错误对话框
    process.StartInfo.UseShellExecute = false;
    process.Start();
    process.WaitForExit();
    process.Close();
}

sh脚本内容

#!/bin/sh

#参数判断
if [ $# != 2 ];then
echo "需要输入xcode工程文件夹路径和ExportOptions.plist文件路径"
exit
fi

cd $1

xcodebuild clean -project Unity-iPhone.xcodeproj -scheme Unity-iPhone -configuration Release

xcodebuild archive -project Unity-iPhone.xcodeproj -scheme Unity-iPhone -archivePath $1/Unity-iPhone.xcarchive

xcodebuild -exportArchive -exportOptionsPlist $2 -archivePath $1/Unity-iPhone.xcarchive -exportPath $1/Unity-iPhone.ipa

open $1/Unity-iPhone.ipa

Windows平台：导出为.zip

BuildPlayerOptions buildPlayerOptions = new BuildPlayerOptions();
string dir = BuildTool.GetBuildPackageRootDir() + "/" + "PC/";
string locationPathName = dir + BuildTool.GetPCPackageName();
buildPlayerOptions.locationPathName = locationPathName;
buildPlayerOptions.scenes = BuildTool.GetBuildScene();
buildPlayerOptions.target = BuildTarget.StandaloneWindows;
buildPlayerOptions.options = BuildOptions.None;

BuildReport report = BuildPipeline.BuildPlayer(buildPlayerOptions);
BuildSummary summary = report.summary;
if (summary.result == BuildResult.Succeeded) {
    Debug.Log("Build succeeded: " + summary.totalSize + " bytes");
    //需要压缩的文件
    //pc/ MonoBleedingEdge xxx_Data UnityCrashHandler32.exe UnityPlayer.dll xxx.exe MonoBleedingEdge
    string exePath = locationPathName;
    string dataPath =locationPathName.Replace(".exe","_Data");
    string crashHandlePath =dir+ "UnityCrashHandler32.exe";
    string dllPath = dir+ "UnityPlayer.dll";
    string monoPath = dir + "MonoBleedingEdge";
    // 添加目录下的所有文件
    List<string> files = new List<string>();
    files.Add(exePath);
    files.Add(dataPath);
    files.Add(crashHandlePath);
    files.Add(dllPath);
    files.Add(monoPath);
    //zip命名
    string archiveName = locationPathName.Replace(".exe", ".zip");
    //使用Zip压缩工具压缩
    ZipUtility.Zip(files.ToArray(), archiveName);
    //删除其他文件
    foreach (var file in files) {
        if (File.Exists(file)) {
            File.Delete(file);
        } else if (Directory.Exists(file)) {
            Directory.Delete(file,true);
        }
    }
        //打开输出目录
    BuildTool.OpenFolder(dir);
    }
    if (summary.result == BuildResult.Failed) {
        Debug.Log("Build failed");
    }

其他代码

//获取当前编辑器选中的场景
public static string[] GetBuildScene() {
    List<string> scenePath = new List<string>();
    EditorBuildSettingsScene[] editorBuildSettingsScene = EditorBuildSettings.scenes;
    if (editorBuildSettingsScene != null) {
        foreach (var scene in editorBuildSettingsScene) {
            scenePath.Add(scene.path);
        }
    }
    return scenePath.ToArray();
    }
//打开文件夹
public static void OpenFolder(string dir) {
    System.Diagnostics.ProcessStartInfo info = new System.Diagnostics.ProcessStartInfo();
    info.FileName = dir;//打开工程所在目录
    System.Diagnostics.Process.Start(info);
    }
//获取sh脚本路径
public static string GetIPAExportOptionsFilePath() {
    DirectoryInfo dir = Directory.GetParent(Application.dataPath);
    string path = dir.ToString() + "/" + "BuildTools" + "/" + "ExportOptions.plist";
    return path;
}
//获取XCode工程依赖文件（需要向新生成的Xcode工程中添加的资源或脚本）路径
public static string GetXcodeProDependentRootPath() {
    DirectoryInfo dir = Directory.GetParent(Application.dataPath);
    string rootDir = dir.ToString() + "/XCodeProDependent";
    return rootDir;
}

七、使用Jenkins构建任务

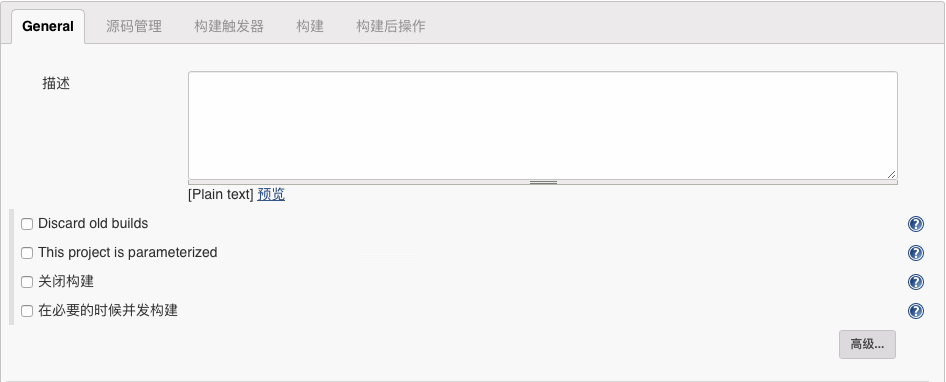

新建Item，设置General，可以添加描述，选择是否丢弃旧的构建，添加自定义参数等等
配置源代码管理，SVN项目地址，连接凭证，我选择的是先还原再更新的方式

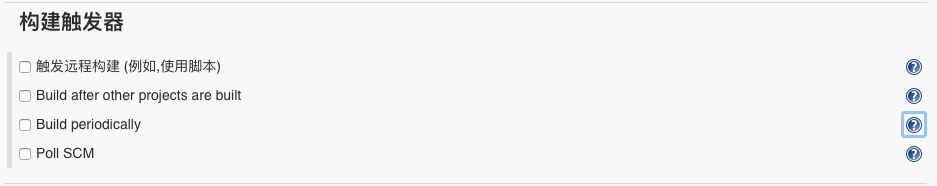

构建触发器，当设置的条件满足时会自动进行构建
构建，可以选择你想用的方式进行构建，可使用bat命令、Shell命令、Unity编辑器命令等方式进行构建，编写命令时我们可以将General里面自定义的参数的和Jenkins提供给我们的参数添加到命令里面进行使用

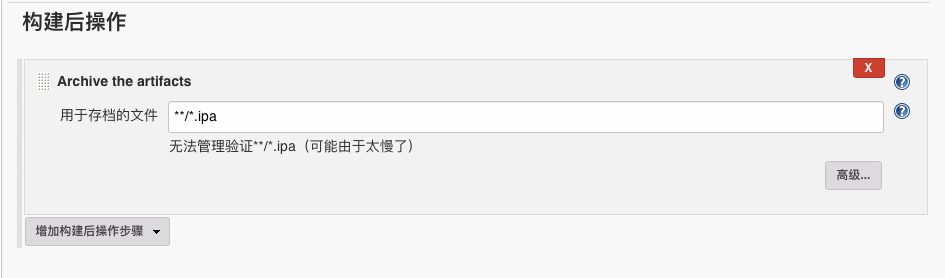

构建后操作。构建完成后，我们可以归档生成的文件，如果有需要也可以在这里添加邮件通知
